Countin’ with histograms and pools

dyce provides two core primitives for enumeration¹.

>>> from dyce import H, P

H objects represent histograms for modeling discrete outcomes. They encode discrete probability distributions as integer counts without any denominator. P objects represent pools (ordered sequences) of histograms. If all you need is to aggregate outcomes (sums) from rolling a bunch of dice (or perform calculations on aggregate outcomes), H objects are probably sufficient. If you need to select certain histograms from a group prior to computing aggregate outcomes (e.g., taking the highest and lowest of each possible roll of n dice), that’s where P objects come in.

As a wise person whose name has been lost to history once said: “Language is imperfect. If at all possible, shut up and point.” So with that illuminating (or perhaps impenetrable) introduction out of the way, let’s dive into some examples!

Basic examples

A six-sided die can be modeled as:

>>> H(6)
H(6)

H(n) is shorthand for explicitly enumerating outcomes \([{{1} .. {n}}]\), each with a frequency of 1.

>>> H(6) == H({1: 1, 2: 1, 3: 1, 4: 1, 5: 1, 6: 1})
True

Tuples with repeating outcomes are accumulated. A six-sided “2, 3, 3, 4, 4, 5” die can be modeled as:

>>> H((2, 3, 3, 4, 4, 5))
H({2: 1, 3: 2, 4: 2, 5: 1})

A fudge die can be modeled as:

>>> H((-1, 0, 1))
H({-1: 1, 0: 1, 1: 1})

Python’s matrix multiplication operator (@) is used to express the number of a particular die (roughly equivalent to the “d” operator in common notations). The outcomes of rolling two six-sided dice (2d6) are:

>>> 2@H(6)
H({2: 1, 3: 2, 4: 3, 5: 4, 6: 5, 7: 6, 8: 5, 9: 4, 10: 3, 11: 2, 12: 1})

A pool of two six-sided dice is:

>>> 2@P(H(6))
P(6, 6)

Where n is an integer, P(n, ...) is shorthand for P(H(n), ...). The above can be expressed more succinctly.

>>> 2@P(6)
P(6, 6)

Pools (in this case, Sicherman dice) can be compared to histograms.

>>> d_sicherman = P(H((1, 2, 2, 3, 3, 4)), H((1, 3, 4, 5, 6, 8)))
>>> d_sicherman == 2@H(6)
True

Both histograms and pools support arithmetic operations. 3×(2d6+4) is:

>>> 3*(2@H(6)+4)
H({18: 1, 21: 2, 24: 3, 27: 4, 30: 5, 33: 6, 36: 5, 39: 4, 42: 3, 45: 2, 48: 1})

The results show there is one way to make 18, two ways to make 21, three ways to make 24, etc. Histograms provide rudimentary formatting for convenience.

>>> print((2@H(6)).format(width=65))
avg |    7.00
std |    2.42
var |    5.83
  2 |   2.78% |#
  3 |   5.56% |##
  4 |   8.33% |####
  5 |  11.11% |#####
  6 |  13.89% |######
  7 |  16.67% |########
  8 |  13.89% |######
  9 |  11.11% |#####
 10 |   8.33% |####
 11 |   5.56% |##
 12 |   2.78% |#

The Miwin-Distribution is:

>>> miwin_iii = H((1, 2, 5, 6, 7, 9))
>>> miwin_iv = H((1, 3, 4, 5, 8, 9))
>>> miwin_v = H((2, 3, 4, 6, 7, 8))
>>> miwin_iii + miwin_iv + miwin_v
H({4: 1, 5: 2, 6: 3, 7: 4, 8: 7, ..., 22: 7, 23: 4, 24: 3, 25: 2, 26: 1})
>>> print((miwin_iii + miwin_iv + miwin_v).format(scaled=True, width=65))
avg |   15.00
std |    4.47
var |   20.00
  4 |   0.46% |##
  5 |   0.93% |#####
  6 |   1.39% |#######
  7 |   1.85% |##########
  8 |   3.24% |##################
  9 |   4.17% |#######################
 10 |   4.63% |##########################
 11 |   5.09% |############################
 12 |   7.87% |############################################
 13 |   8.80% |#################################################
 14 |   8.33% |###############################################
 15 |   6.48% |####################################
 16 |   8.33% |###############################################
 17 |   8.80% |#################################################
 18 |   7.87% |############################################
 19 |   5.09% |############################
 20 |   4.63% |##########################
 21 |   4.17% |#######################
 22 |   3.24% |##################
 23 |   1.85% |##########
 24 |   1.39% |#######
 25 |   0.93% |#####
 26 |   0.46% |##

One way to model the outcomes of subtracting the lesser of two six-sided dice from the greater is:

>>> abs(H(6) - H(6))
H({0: 6, 1: 10, 2: 8, 3: 6, 4: 4, 5: 2})

Arithmetic operations implicitly “flatten” pools into histograms.

>>> 3*(2@P(6)+4)
H({18: 1, 21: 2, 24: 3, 27: 4, 30: 5, 33: 6, 36: 5, 39: 4, 42: 3, 45: 2, 48: 1})
>>> abs(P(6) - P(6))
H({0: 6, 1: 10, 2: 8, 3: 6, 4: 4, 5: 2})

Histograms should be sufficient for most calculations. However, pools are useful for “taking” (selecting) only some of each roll’s outcomes. This is done by providing one or more index arguments to the P.h method or the P.rolls_with_counts method. Indexes can be integers, slices, or a mix thereof. Outcome indexes are ordered from least to greatest with negative values counting from the right, as one would expect (i.e., [0], [1], …, [-2], [-1]). Summing the least two faces when rolling three six-sided dice would be:

>>> 3@P(6)
P(6, 6, 6)
>>> (3@P(6)).h(0, 1)  # see warning below about parentheses
H({2: 16, 3: 27, 4: 34, 5: 36, 6: 34, 7: 27, 8: 19, 9: 12, 10: 7, 11: 3, 12: 1})

Mind your parentheses

Parentheses are needed in the above example because @ has a lower precedence than . and […].

>>> 2@P(6).h(1)  # equivalent to 2@(P(6).h(1))
Traceback (most recent call last):
...
IndexError: tuple index out of range
>>> (2@P(6)).h(1)
H({1: 1, 2: 3, 3: 5, 4: 7, 5: 9, 6: 11})

Taking the least, middle, or greatest face when rolling three six-sided dice would be:

>>> p_3d6 = 3@P(6)
>>> p_3d6.h(0)
H({1: 91, 2: 61, 3: 37, 4: 19, 5: 7, 6: 1})
>>> print(p_3d6.h(0).format(width=65))
avg |    2.04
std |    1.14
var |    1.31
  1 |  42.13% |#####################
  2 |  28.24% |##############
  3 |  17.13% |########
  4 |   8.80% |####
  5 |   3.24% |#
  6 |   0.46% |

>>> p_3d6.h(1)
H({1: 16, 2: 40, 3: 52, 4: 52, 5: 40, 6: 16})
>>> print(p_3d6.h(1).format(width=65))
avg |    3.50
std |    1.37
var |    1.88
  1 |   7.41% |###
  2 |  18.52% |#########
  3 |  24.07% |############
  4 |  24.07% |############
  5 |  18.52% |#########
  6 |   7.41% |###

>>> p_3d6.h(2)
H({1: 1, 2: 7, 3: 19, 4: 37, 5: 61, 6: 91})
>>> print(p_3d6.h(-1).format(width=65))
avg |    4.96
std |    1.14
var |    1.31
  1 |   0.46% |
  2 |   3.24% |#
  3 |   8.80% |####
  4 |  17.13% |########
  5 |  28.24% |##############
  6 |  42.13% |#####################

Summing the greatest and the least faces when rolling a typical six-die polygonal set would be:

>>> d10 = H(10)-1 ; d10  # a common “d10” with faces [0 .. 9]
H({0: 1, 1: 1, 2: 1, 3: 1, 4: 1, 5: 1, 6: 1, 7: 1, 8: 1, 9: 1})
>>> h = P(4, 6, 8, d10, 12, 20).h(0, -1)
>>> print(h.format(width=65, scaled=True))
avg |   13.48
std |    4.40
var |   19.39
  1 |   0.00% |
  2 |   0.01% |
  3 |   0.06% |
  4 |   0.30% |#
  5 |   0.92% |#####
  6 |   2.03% |###########
  7 |   3.76% |####################
  8 |   5.57% |##############################
  9 |   7.78% |###########################################
 10 |   8.99% |##################################################
 11 |   8.47% |###############################################
 12 |   8.64% |################################################
 13 |   8.66% |################################################
 14 |   6.64% |####################################
 15 |   5.62% |###############################
 16 |   5.16% |############################
 17 |   5.00% |###########################
 18 |   5.00% |###########################
 19 |   5.00% |###########################
 20 |   5.00% |###########################
 21 |   4.50% |#########################
 22 |   2.01% |###########
 23 |   0.73% |####
 24 |   0.18% |

Pools are ordered and iterable.

>>> list(2@P(8, 4, 6))
[H(4), H(4), H(6), H(6), H(8), H(8)]

Indexing selects particular histograms into a new pool.

>>> 2@P(8, 4, 6)
P(4, 4, 6, 6, 8, 8)
>>> (2@P(8, 4, 6))[:2]
P(4, 4)
>>> (2@P(8, 4, 6))[::2]
P(4, 6, 8)

A brute-force way to enumerate all possible rolls is:

>>> import itertools
>>> list(itertools.product(*P(-3, 3)))
[(-3, 1), (-3, 2), (-3, 3), (-2, 1), (-2, 2), (-2, 3), (-1, 1), (-1, 2), (-1, 3)]

Both histograms and pools support various comparison operations as well as substitution. The odds of observing all even faces when rolling \(n\) six-sided dice, for \(n\) in \([1..6]\) is:

>>> d6_even = H(6).is_even()
>>> for n in range(6, 0, -1):
...   number_of_evens_in_nd6 = n@d6_even
...   all_even = number_of_evens_in_nd6.eq(n)
...   print("{: >2}d6: {: >6.2%}".format(n, all_even[1] / sum(all_even.counts())))
 6d6:  1.56%
 5d6:  3.12%
 4d6:  6.25%
 3d6: 12.50%
 2d6: 25.00%
 1d6: 50.00%

The odds of scoring at least one nine or higher on any single die when rolling \(n\) “exploding” six-sided dice, for \(n\) in \([1..10]\) is:

>>> exploding_d6 = H(6).explode(max_depth=2)
>>> for n in range(10, 0, -1):
...   d6e_ge_9 = exploding_d6.ge(9)
...   number_of_nines_or_higher_in_nd6e = n@d6e_ge_9
...   at_least_one_9 = number_of_nines_or_higher_in_nd6e.ge(1)
...   print("{: >2}d6-exploding: {: >6.2%}".format(n, at_least_one_9[1] / sum(at_least_one_9.counts())))
10d6-exploding: 69.21%
 9d6-exploding: 65.36%
 8d6-exploding: 61.03%
 7d6-exploding: 56.15%
 6d6-exploding: 50.67%
 5d6-exploding: 44.51%
 4d6-exploding: 37.57%
 3d6-exploding: 29.77%
 2d6-exploding: 20.99%
 1d6-exploding: 11.11%

Visualization

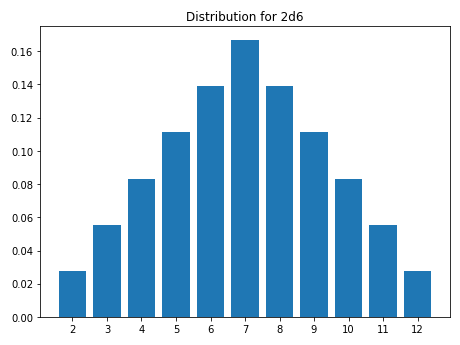

H objects provide a distribution method and a distribution_xy method to ease integration with plotting packages like matplotlib.

>>> outcomes, probabilities = (2@H(6)).distribution_xy()
>>> import matplotlib  # doctest: +SKIP
>>> matplotlib.pyplot.bar(
...   [str(v) for v in outcomes],
...   probabilities,
... )  # doctest: +SKIP
>>> matplotlib.pyplot.title(r"Distribution for 2d6")  # doctest: +SKIP
>>> matplotlib.pyplot.show()  # doctest: +SKIP

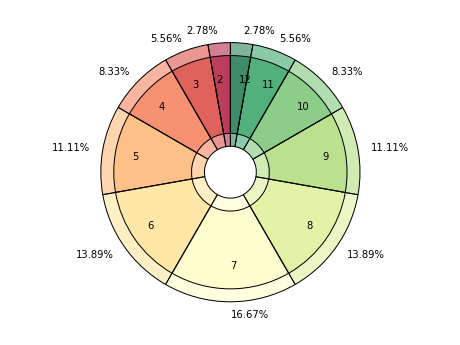

dyce.viz provides some experimental, rudimentary conveniences if it detects that matplotlib is installed (e.g., via Jupyter).

>>> from dyce.viz import plot_burst
>>> fig, ax = plot_burst(2@H(6))  # doctest: +SKIP
>>> matplotlib.pyplot.show()  # doctest: +SKIP

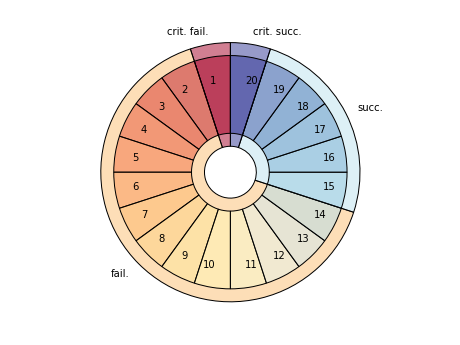

The outer ring and corresponding labels can be overridden for interesting, at-a-glance displays. Overrides apply counter-clockwise, starting from the 12 o‘clock position.

>>> d20 = H(20)
>>> plot_burst(d20, outer=(
...   ("crit. fail.", d20.le(1)[1]),
...   ("fail.", d20.within(2, 14)[0]),
...   ("succ.", d20.within(15, 19)[0]),
...   ("crit. succ.", d20.ge(20)[1]),
... ), inner_color="RdYlBu_r")  # doctest: +SKIP
>>> matplotlib.pyplot.show()  # doctest: +SKIP

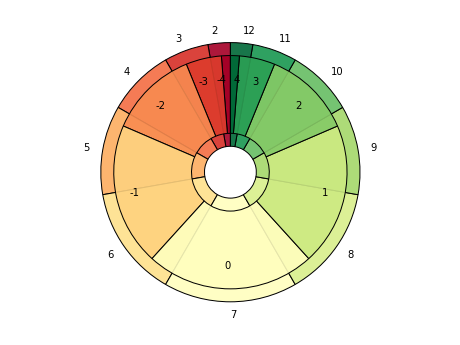

The outer ring can also be used to compare two histograms directly. Ever been curious how your four shiny new fudge dice stack up against your trusty ol’ double six-siders? Well wonder no more! The dyce abides.

>>> df_4 = 4@H((-1, 0, 1))
>>> d6_2 = 2@H(6)
>>> plot_burst(df_4, d6_2, alpha=0.9)  # doctest: +SKIP
>>> matplotlib.pyplot.show()  # doctest: +SKIP

Advanced exercise – modeling Risis

Risus and its many community-developed alternative rules not only make for entertaining reading, but are fertile ground for stressing ergonomics and capabilities of any discrete outcome modeling tool. We can easily model its opposed combat system for various starting configurations through the first round.

>>> for them in range(3, 6):
...   print("---")
...   for us in range(them, them + 3):
...     first_round = (us@H(6)).vs(them@H(6))  # -1 is a loss, 0 is a tie, 1 is a win
...     results = first_round.format(width=0)
...     print(f"{us}d6 vs {them}d6: {results}")
---
3d6 vs 3d6: {..., -1: 45.36%, 0:  9.28%, 1: 45.36%}
4d6 vs 3d6: {..., -1: 19.17%, 0:  6.55%, 1: 74.28%}
5d6 vs 3d6: {..., -1:  6.07%, 0:  2.99%, 1: 90.93%}
---
4d6 vs 4d6: {..., -1: 45.95%, 0:  8.09%, 1: 45.95%}
5d6 vs 4d6: {..., -1: 22.04%, 0:  6.15%, 1: 71.81%}
6d6 vs 4d6: {..., -1:  8.34%, 0:  3.26%, 1: 88.40%}
---
5d6 vs 5d6: {..., -1: 46.37%, 0:  7.27%, 1: 46.37%}
6d6 vs 5d6: {..., -1: 24.24%, 0:  5.79%, 1: 69.96%}
7d6 vs 5d6: {..., -1: 10.36%, 0:  3.40%, 1: 86.24%}

This highlights the mechanic’s notorious “death spiral”, which we can visualize as a heat map.

>>> from typing import List, Tuple
>>> col_names = ["Loss", "Tie", "Win"]  # mapping from [-1, 0, 1], respectively
>>> col_ticks = list(range(len(col_names)))
>>> num_rows = 3
>>> fig, axes = matplotlib.pyplot.subplots(1, num_rows)  # doctest: +SKIP
>>> for i, them in enumerate(range(3, 3 + num_rows)):
...   ax = axes[i]  # doctest: +SKIP
...   row_names: List[str] = []
...   rows: List[Tuple[float, ...]] = []
...   for us in range(them, them + num_rows):
...     row_names.append("{}d6 …".format(us))
...     rows.append((us@H(6)).vs(them@H(6)).distribution_xy()[-1])
...   _ = ax.imshow(rows)  # doctest: +SKIP
...   ax.set_title("… vs {}d6".format(them))  # doctest: +SKIP
...   ax.set_xticks(col_ticks)  # doctest: +SKIP
...   ax.set_xticklabels(col_names, rotation=90)  # doctest: +SKIP
...   ax.set_yticks(list(range(len(rows))))  # doctest: +SKIP
...   ax.set_yticklabels(row_names)  # doctest: +SKIP
...   for y in range(len(row_names)):
...     for x in range(len(col_names)):
...       _ = ax.text(
...         x, y,
...         "{:.0%}".format(rows[y][x]),
...         ha="center", va="center",color="w",
...       )  # doctest: +SKIP
>>> fig.tight_layout()  # doctest: +SKIP

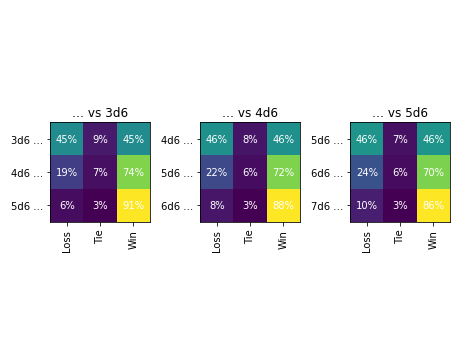

Calling matplotlib.pyplot.show presents:

With a little elbow finger grease, we can roll up our…erm…fingerless gloves and even model various starting configurations through to completion to get a better sense of the impact of any initial disparity (in this case, applying dynamic programming to avoid redundant computations).

>>> from typing import Callable, Dict, Tuple
>>> def risus_combat_driver(
...     us: int,
...     them: int,
...     us_vs_them_func: Callable[[int, int], H],
... ) -> H:
...   if us < 0 or them < 0:
...     raise ValueError("cannot have negative numbers (us: {}, them: {})".format(us, them))
...   if us == 0 and them == 0:
...     return H({0: 1})  # should not happen unless combat(0, 0) is called from the start
...   already_solved: Dict[Tuple[int, int], H] = {}
...
...   def _resolve(us: int, them: int) -> H:
...     if (us, them) in already_solved: return already_solved[(us, them)]
...     elif us == 0: return H({-1: 1})  # we are out of dice, they win
...     elif them == 0: return H({1: 1})  # they are out of dice, we win
...     this_round = us_vs_them_func(us, them)
...
...     def _next_round(_: H, outcome) -> H:
...       if outcome < 0: return _resolve(us - 1, them)  # we lost this round, and one die
...       elif outcome > 0: return _resolve(us, them - 1)  # they lost this round, and one die
...       else: return H({})  # ignore (immediately reroll) all ties
...
...     already_solved[(us, them)] = this_round.substitute(_next_round)
...     return already_solved[(us, them)]
...
...   return _resolve(us, them)

>>> for t in range(3, 6):
...   print("---")
...   for u in range(t, t + 3):
...     results = risus_combat_driver(
...       u, t,
...       lambda u, t: (u@H(6)).vs(t@H(6))
...     ).format(width=0)
...     print(f"{u}d6 vs {t}d6: {results}")
---
3d6 vs 3d6: {..., -1: 50.00%, 1: 50.00%}
4d6 vs 3d6: {..., -1: 10.50%, 1: 89.50%}
5d6 vs 3d6: {..., -1:  0.66%, 1: 99.34%}
---
4d6 vs 4d6: {..., -1: 50.00%, 1: 50.00%}
5d6 vs 4d6: {..., -1: 12.25%, 1: 87.75%}
6d6 vs 4d6: {..., -1:  1.07%, 1: 98.93%}
---
5d6 vs 5d6: {..., -1: 50.00%, 1: 50.00%}
6d6 vs 5d6: {..., -1: 13.66%, 1: 86.34%}
7d6 vs 5d6: {..., -1:  1.49%, 1: 98.51%}

Using our risus_combat_driver from above, we can model the less death-spirally “Best of Set” alternative mechanic from The Risus Companion with the optional “Goliath Rule”.

>>> def deadly_combat_vs(us: int, them: int) -> H:
...   best_us = (us@P(6)).h(-1)
...   best_them = (them@P(6)).h(-1)
...   h = best_us.vs(best_them)
...   # Goliath rule for resolving ties
...   h = h.substitute(lambda h, outcome: (us < them) - (us > them) if outcome == 0 else outcome)
...   return h

>>> for t in range(3, 5):
...   print("---")
...   for u in range(t, t + 3):
...     results = risus_combat_driver(u, t, deadly_combat_vs).format(width=0)
...     print(f"{u}d6 vs {t}d6: {results}")
---
3d6 vs 3d6: {..., -1: 50.00%, 1: 50.00%}
4d6 vs 3d6: {..., -1: 36.00%, 1: 64.00%}
5d6 vs 3d6: {..., -1: 23.23%, 1: 76.77%}
---
4d6 vs 4d6: {..., -1: 50.00%, 1: 50.00%}
5d6 vs 4d6: {..., -1: 40.67%, 1: 59.33%}
6d6 vs 4d6: {..., -1: 30.59%, 1: 69.41%}

Modeling the “Evens Up” alternative dice mechanic is currently beyond the capabilities of dyce without additional computation. This is for two reasons. First, dyce only provides mechanisms to approximate outcomes through a fixed number of iterations (not an infinite series). Most of the time, this is good enough. Second, with one narrow exception, dyce only provides a mechanism to substitute outcomes, not counts.

Both of these limitations can be circumvented where distributions can be computed and encoded as histograms. For this mechanic, we can observe that a single six-sided die (1d6) has a \(\frac{1}{2}\) chance of coming up even, thereby earning a “success”. We can also observe that it has a \(\frac{1}{6}\) chance of showing a six, earning an additional roll. That second roll has a \(\frac{1}{2}\) chance of coming up even, as well as a \(\frac{1}{6}\) chance of earning another roll, and so on. In other words, the number of successes you can expect to roll are:

\[ \frac{1}{2} + \frac{1}{6} \left( \frac{1}{2} + \frac{1}{6} \left( \frac{1}{2} + \frac{1}{6} \left( \frac{1}{2} + \ldots \right) \right) \right) \]

Or, in the alternative:

\[ \frac{1}{2} + \frac{1}{2}\frac{1}{6} + \frac{1}{2}\frac{1}{6}\frac{1}{6} + \frac{1}{2}\frac{1}{6}\frac{1}{6}\frac{1}{6} + \ldots \]

Or simply:

\[ \frac{1}{{2} \times {6}^{0}} + \frac{1}{{2} \times {6}^{1}} + \frac{1}{{2} \times {6}^{2}} + \frac{1}{{2} \times {6}^{3}} + \ldots \]

So what is that? We probably don’t know unless we do math for a living, or at least as an active hobby. (The author does neither, which is partially what motivated the creation of this library.) Computing the value to the first hundred iterations offers a clue.

>>> 1/2 * sum(1 / (6 ** i) for i in range(100))
0.59999999999999975575093458246556110680103302001953125

It appears convergent around \(\frac{3}{5}\). Let’s see if we can validate that. An article from MathIsFun.com provides useful guidance. The section on geometric series is easily adapted to our problem.

\[ \begin{matrix} S & = & \frac{1}{{2} \times {6}^{0}} + \frac{1}{{2} \times {6}^{1}} + \frac{1}{{2} \times {6}^{2}} + \frac{1}{{2} \times {6}^{3}} + \frac{1}{{2} \times {6}^{4}} + \ldots \\ & = & \overbrace{ \frac{1}{2} } + \underbrace{ \frac{1}{12} + \frac{1}{72} + \frac{1}{432} + \frac{1}{2\,592} + \ldots } \\ \end{matrix} \]

\[ \begin{matrix} \frac{1}{6}S & = & \frac{1}{6}\frac{1}{{2} \times {6}^{0}} + \frac{1}{6}\frac{1}{{2} \times {6}^{1}} + \frac{1}{6}\frac{1}{{2} \times {6}^{2}} + \frac{1}{6}\frac{1}{{2} \times {6}^{3}} + \ldots \\ & = & \underbrace{ \frac{1}{12} + \frac{1}{72} + \frac{1}{432} + \frac{1}{2\,592} + \ldots } \\ \end{matrix} \]

\[ S = \overbrace{ \frac{1}{2} } + \underbrace{ \frac{1}{6}S } \]

\[ S - \frac{1}{6}S = \frac{5}{6}S = \frac{1}{2} \]

\[ S = \frac{6}{10} = \frac{3}{5} \]

Well, butter my butt and call me a biscuit! Math really is fun! 🧈 🤠 🧮

Info

The Archimedean visualization technique mentioned in the aforementioned article also adapts well to this case. It involves no algebra and is left as an exercise to the reader…at least one with nothing more pressing to do.

Armed with this knowledge, we can now model “Evens Up” using our risus_combat_driver from above.

>>> from functools import partial
>>> d6_evens_exploding_on_six = H({1: 3, 0: 2})  # 3 dubyas, 2 doughnuts

>>> def evens_up_vs(us: int, them: int, goliath: bool = False) -> H:
...   h = (us@d6_evens_exploding_on_six).vs(them@d6_evens_exploding_on_six)
...   if goliath:
...     h = h.substitute(lambda h, outcome: (us < them) - (us > them) if outcome == 0 else outcome)
...   return h

>>> for t in range(3, 5):
...   print("---")
...   for u in range(t, t + 3):
...     results = risus_combat_driver(u, t, partial(evens_up_vs, goliath=True)).format(width=0)
...     print(f"{u}d6 vs {t}d6: {results}")
---
3d6 vs 3d6: {..., -1: 50.00%, 1: 50.00%}
4d6 vs 3d6: {..., -1: 27.49%, 1: 72.51%}
5d6 vs 3d6: {..., -1:  9.27%, 1: 90.73%}
---
4d6 vs 4d6: {..., -1: 50.00%, 1: 50.00%}
5d6 vs 4d6: {..., -1: 28.50%, 1: 71.50%}
6d6 vs 4d6: {..., -1: 10.50%, 1: 89.50%}

Time to get meta-evil on those outcomes!

dyce offers best-effort support for arbitrary number-like outcomes, including primitives from symbolic expression packages such as SymPy.

>>> import sympy.abc
>>> d6x = H(6) + sympy.abc.x
>>> d8y = H(8) + sympy.abc.y
>>> P(d6x, d8y, d6x).h()
H({2*x + y + 3: 1, 2*x + y + 4: 3, 2*x + y + 5: 6, ..., 2*x + y + 18: 6, 2*x + y + 19: 3, 2*x + y + 20: 1})

Be aware that performance can be quite slow, however.

dyce remains opinionated about ordering. For non-critical contexts, dyce will attempt a “natural” ordering based on the string representation of each outcome if relative values are indeterminate. This is to accommodate symbolic expressions whose relative values are often unknowable.

>>> expr = sympy.abc.x < sympy.abc.x * 3 ; expr
x < 3*x
>>> bool(expr)  # nope
Traceback (most recent call last):
  ...
TypeError: cannot determine truth value of Relational
>>> s = sympy.abc.x - 1
>>> d3x = H(3) * sympy.abc.x
>>> d3x2 = H(i * sympy.abc.x for i in range(3, 0, -1))
>>> d3x == d3x2  # still results in consistent ordering
True
>>> P(d3x, d3x2)
P(H({2*x: 1, 3*x: 1, x: 1}), H({2*x: 1, 3*x: 1, x: 1}))
>>> sympy.abc.x * 3 in d3x
True
>>> sympy.abc.x - 1 in d3x
False

SymPy, for example, does not attempt simple relative comparisons between symbolic expressions, even where they are unambiguously resolvable. Instead, it relies on the caller to invoke its proprietary solver APIs.

>>> bool(sympy.abc.x < sympy.abc.x + 1)
Traceback (most recent call last):
  ...
TypeError: cannot determine truth value of Relational
>>> import sympy.solvers.inequalities
>>> sympy.solvers.inequalities.reduce_inequalities(sympy.abc.x < sympy.abc.x + 1, [sympy.abc.x])
True

dyce, of course, is happily ignorant of all that keenness. (As it should be.) In practice, that means that certain operations won’t work with symbolic expressions where correctness depends on ordering outcomes according to relative value (e.g., dice selection from pools).

Flattening pools works.

>>> p = P(d3x / 3, (d3x + 1) / 3, (d3x + 2) / 3)
>>> p.h()
H({2*x + 1: 7, 3*x + 1: 1, 4*x/3 + 1: 3, 5*x/3 + 1: 6, 7*x/3 + 1: 6, 8*x/3 + 1: 3, x + 1: 1})

Selecting the “lowest” die doesn’t.

>>> p.h(0)
Traceback (most recent call last):
  ...
TypeError: cannot determine truth value of Relational

Selecting all dice works, since it’s equivalent to flattening (no sorting is required).

>>> p.h(slice(None))
H({2*x + 1: 7, 3*x + 1: 1, 4*x/3 + 1: 3, 5*x/3 + 1: 6, 7*x/3 + 1: 6, 8*x/3 + 1: 3, x + 1: 1})

Enumerating rolls doesn’t, even where there is no selection, because each roll’s outcomes are sorted least-to-greatest.

>>> list(p.rolls_with_counts())
Traceback (most recent call last):
  ...
TypeError: cannot determine truth value of Relational

P.roll “works” (i.e., falls back to natural ordering of outcomes), but that is a deliberate compromise of convenience.

>>> p.roll()  # doctest: +SKIP
(2*x/3, 2*x/3 + 1/3, x/3 + 2/3)

P.umap can help pave the way back to concrete outcomes.

>>> f = lambda o: o.subs({sympy.abc.x: sympy.Rational(1, 3)})
>>> p.umap(f)
P(H({1/9: 1, 2/9: 1, 1/3: 1}), H({4/9: 1, 5/9: 1, 2/3: 1}), H({7/9: 1, 8/9: 1, 1: 1}))
>>> p.umap(f).h(-1)
H({7/9: 9, 8/9: 9, 1: 9})

Further exploration

Consider delving into some applications and translations for more sophisticated examples, or jump right into the API.

---

1. dyce also provides additional primitives (R objects and their kin) which are useful for producing weighted randomized rolls without the overhead enumeration. These are covered seperately. ↩
